2012 Oilwell E-2000 HP Drilling Rig

2012 Oilwell E-2000 HP Drilling Rig

Contact us for price

Financing Available
Apply for credit

Location:Houston, TX

orCall +18009572391

Description

www.VIDAEQ.com

Oilwell E-2000 Drilling Rig Package For Sale

This rig is in great condition and was refurbished in 2012!


👉 Viewing this on Machinio? Then follow this link to view the full Equipment Listing https://www.vidaeq.com/listings/4412183-refurbished-2012-oilwell-e-2000-hp-drilling-rig


This rig is ready to work! It is currently rigged down and ready for shipping. Call Us Today to setup your inspection 1-800-957-2391


Technical Specifications / Included Equipment:

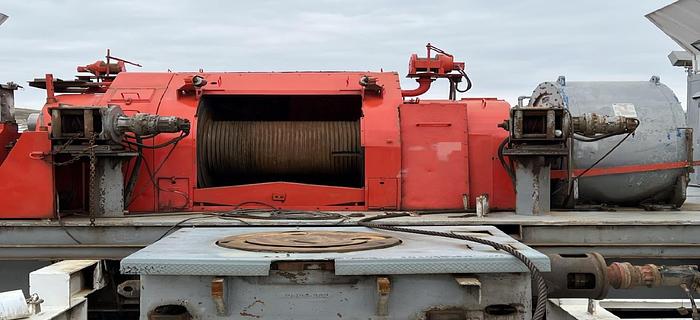

  • DRAWWORKS: Oilwell E 2000 (2000hp) with Elmago 7838 Auxiliary Electric Brake.Powered by Two ( G.E. 752 1000 HP Electric Motors, Drillers Console, Grooved for 1 ½" Wire line, Single Drum. With 2 Hyd catheads.

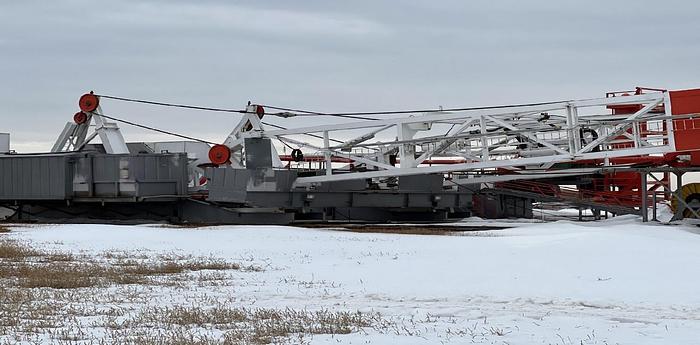

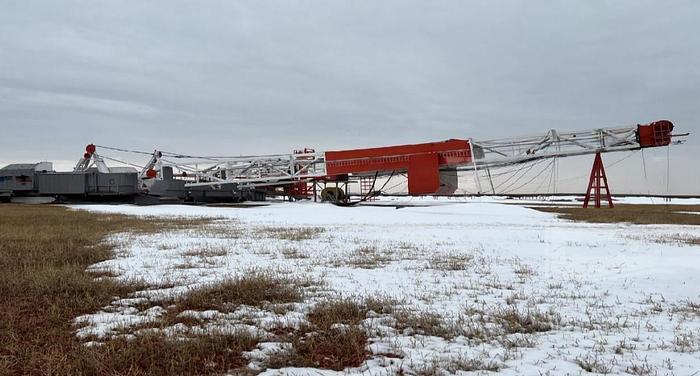

  • MAST: Lee C. Moore, 152' Beam Leg, 1,300,000# SHL. Seven (7) 60" Sheaves with (1) 60" Fast line Sheave. Boom Pole, Derrick Shoes, Stand Pipe Manifold. Derrick Ladder.
  • TRAVELING EQUIP: Oilwell 650 Ton Blocks. VARCO TDS 11S 500 ton top drive with 120" 500 ton bales
  • SUBSTRUCTURE: Substructure Lee C. Moore Swing Up With Elevator, 32' Floor Height, Rated 800,000# Setback, Sub Skids (2) 5' H x 60' long. Lee C Moore Rig Rover Walking system Mdl 544670 500,000 Capacity. Grasshopper will walk 160 feet.
  • ROTARY: Rotary Table Oilwell 8275 27" x 53" w Master Bushing
  • BOP EQUIPMENT: One (1) 13 5/8" Cameron Type U Single Ram Preventor 5000 # One (1) 13 5/8" Schaffer Double Ram Preventor 5000 # One ( GL Hydril Annular 5000# One (1) 5000# Mud Cross Accumulator Koomey type 80 7 Station. Choke Manifold 4 1/16"X 10k
  • ENGINES: Four ( Caterpillar 3512 diesel engines with Cat 1050 KW generators. 2 3512C used 1 year 2 3512A models
  • SCR: Legacy Siemens 4X4 control house. 600v DC and 480v AC power. 2 500t AC units and stepdown transformers
  • MUD PUMPS: Two (2) Gardner Denver PZ 11's (1600 hp each) With 7500 PSI Southwest fluid ends, powered by (4) AMD 800 hp DC Traction Motors 5x6 Charge Pumps, Belts, Belt Guard.
  • MUD SYSTEM: Three Tank Mud System. 10' W x 40' L x 8' H. 1500 Bbl Capacity Two Derrick Shale Shakers Mud Mixers Harrisburg Mud Gas Separator Brandt Mud Mixers 8 10 hp Brandt Agitators
  • WATER TANK: 2 Water Tanks 500 BBLS Skidded Double Life Pump with Electric Motor
  • HANDLING TOOLS: 500 Ton Handling tools for Contractor's Drill Pipe and Drill Collars, Blohm & Voss Hydraulic Floor hand, and rotating mouse hole.
  • DRILL STRING: Drill Pipe 10,717 feet 340 jts 5" OD, 19.50 4 ½ IF Grade S 135 Drill Collars 6 Jts. 8" OD6 5/8 REG Drill Collars 6 Jts. 9" OD 75/8 REG HWDP 50jts 5" with 4 ½ IF thread Assorted XO subs and lift subs
  • AUXILIARY EQUIP: Mathey .092 Wireline Measuring Unit. 2 Ingersoll Rand, K5UL Air hoist for handling tubulars. 2 Hyd boom pole winches Pipe Racks Three (3 sets) 18" Tall V Door Ramp with Stairs Shaker Manifold 12" pipe with outlets Hydraulic Power Unit 2 100 hp max min 75 hoses and hydraulic lines Cat walk two piece 18" H x50’ L Martin Decker weight indicator Elevator Links, 500 ton Drill Pipe Elevators Drill Pipe Slips Drill Collar Elevators Manual Tongs Type DB with 3 ½" 10 ¾" jaws
  • HOUSES: Top Dog House Knowledge Box. Tool Benches w/ Koomey type 80, Remote Control Bottom Change House w/ 16 Lockers/ Parts House lea. Tool House/Paint locker lea. Parts Storage House



Please contact us for further detail and pricing.


Thank you



Subject to prior sale and/or other disposition.

All Items to be quoted in US currency. All prices and availability are subject to change without

notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until

the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless

otherwise specified. Use hours are estimate hours as of the date of this posting and are not

guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this

offer. Sale subject to terms and conditions on final bill of sale.



Contact:

Brandon Martinez

bmartinez@vidabem.us

+1 415 686 8796

www.vidaeq.com

Specifications

ManufacturerOilwell
ModelE-2000 HP
Year2012
ConditionUsed
Stock Number00399
DrawworksOilwell E 2000 (2000hp)
MastLee C. Moore, 152' Beam Leg, 1,300,000# SHL
Traveling EquipmentOilwell 650 Ton Blocks. VARCO TDS 11S 500 ton top drive with 120" 500 ton bales
SubstructureLee C. Moore Swing Up With Elevator, 32' Floor Height,
Rotary TableOilwell 8275 27" x 53" w Master Bushing
Gen SetsFour (4) Caterpillar 3512 diesel engines with Cat 1050 KW generators
