2022 Elgin Kemtron Dewatering Package

www.VIDAEQ.com

All equipment is lightly used and in great shape. Manufactured in 2022.

Full specifications and drawings can be found in the Documents section.

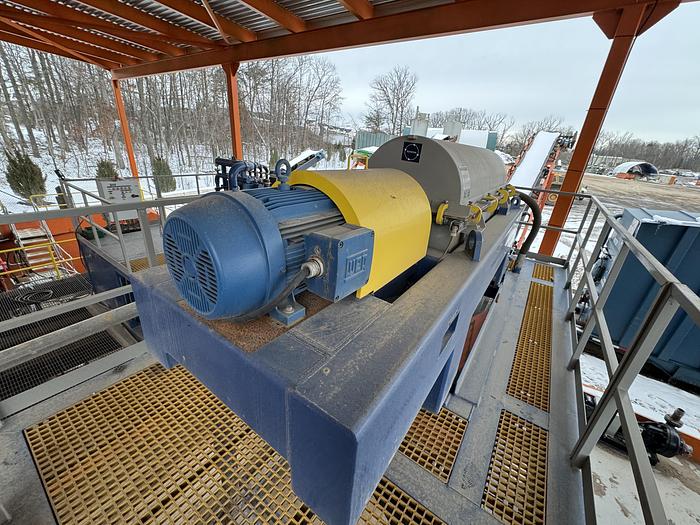

ELGIN SEPARATION SOLUTIONS ESS-1967 HD2 CENTRIFUGE

• ESS-1967 HD2 CENTRIFUGE ASSEMBLY

• 125 HP MAIN DRIVE MOTOR

• 40 HP BACK DRIVE MOTOR

• AUTOMATIC GREASE SYSTEM FOR PILLOW BLOCK BEARINGS

(1) 8 LITER RESERVOIR

(1) 24 VDC PUMP W/ TIMER & FEEDBACK

(1) 6 PORT DIVIDER VALVE

• GENERAL NOTES: ESTIMATED DRY WEIGHT: 13,600 lbs

• FEED TUBE SIZE: 2" NPT

• SOLID DISCHARGE DIM.: 15 1/2" x 25"

• LIQUID DISCHARGE: 6" GROOVED PIPE CONNECTION

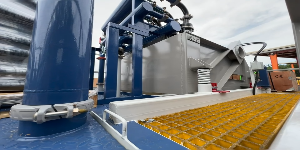

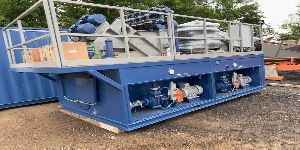

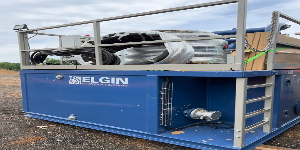

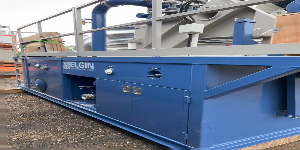

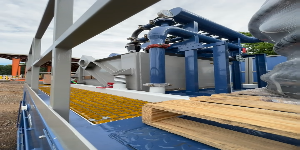

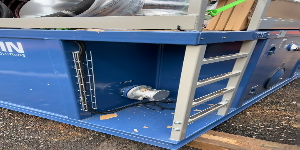

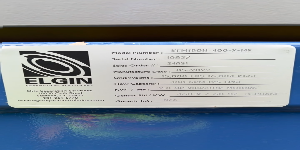

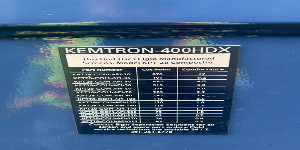

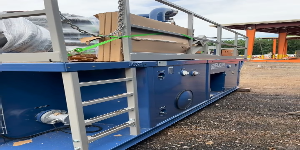

ELGIN SEPARATION SOLUTIONS KEMTRON

-400-X-MF FLUID RECLAMATION UNIT

- (1) TANK- 2275 GALLON CAPACITY, 1025 GAL. DIRTY TANK & 1250 GAL. CLEAN TANK.

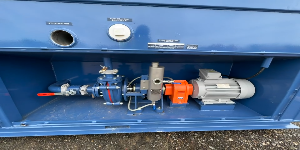

- (1) 3x2 15 HP SLURRY PUMP w/POLYURETHANE LINER FOR MUD GUN.

- (1) 3x2 20 HP SLURRY PUMP w/POLYURETHANE LINER FOR DESILTER

- (1) TANGO SHAKER, 4 PANEL DOUBLE DECK w/ 2.0HP VIBRATOR MOTORS.

- (1) 6 - 4" CONE DESILTER ASSEMBLY WITH ISOLATING VALVES.

- (4) HIGH PRESSURE MUD GUNS 2" X 5/8" BORE.

- (2) THERMOSIPHON VESSEL FOR SLURRY PUMP MECHANICAL SEAL COOLING.

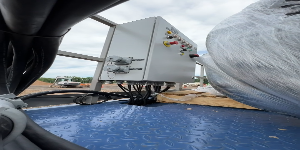

- (1) NEMA 4X CONTROL PANEL.

- (1) ELGIN LED LIGHT.

- (2) 5.5KW IMMERSION HEATER FOR CLEAN & DIRTY TANKS.

- LOW/HIGH LEVEL SENSORS FOR CLEAN & DIRTY TANKS

- OSHA COMPLIANT HANDRAILS, LADDER & GRATINGS.

GENERAL NOTE: ESTIMATED TOTAL DRY WEIGHT = 15,000 LBS

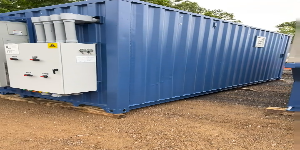

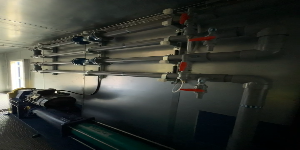

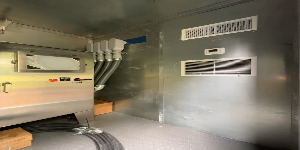

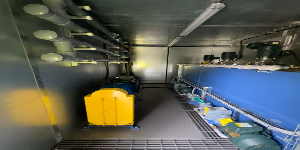

ELGIN SEPARATION SOLUTIONS 20' POLYMER INJECTION SYSTEM

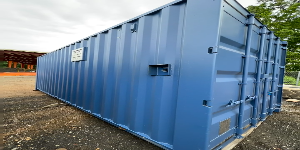

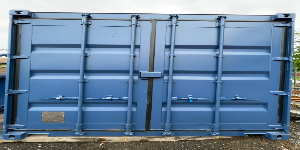

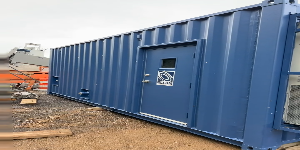

 (1) 20' HIGH CUBE INSULATED SHIPPING CONTAINER w/ DIAMOND PLATE FLOOR

- (2) PARTITIONED POLYMER TANKS (480 GAL. EACH) w/ LOW LEVEL SENSORS

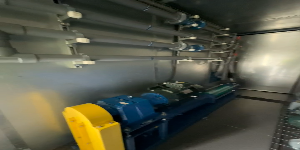

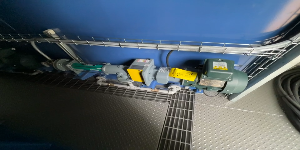

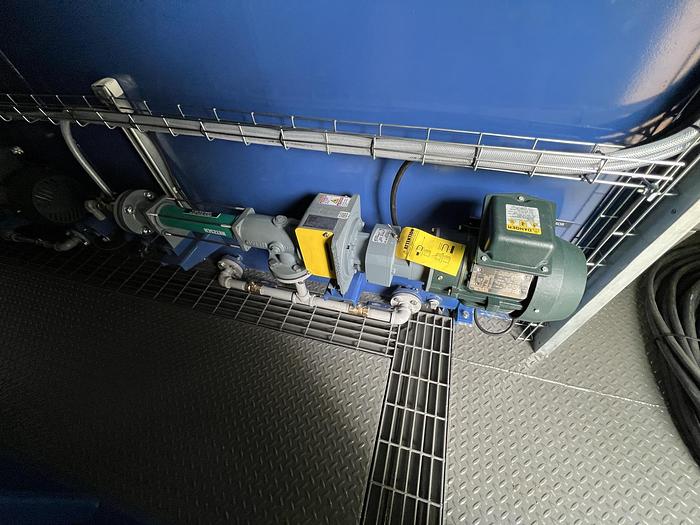

- (2) 2"x2" PROGRESSIVE CAVITY PUMP w/ 2HP MOTOR, 0.5 TO 6 GPM, VFD CONTROLLED

- (1) 6"x6" PROGRESSIVE CAVITY PUMP w/ 20HP MOTOR FOR CENTRIFUGE FEED

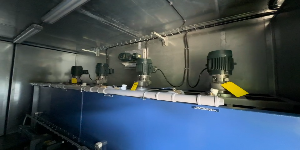

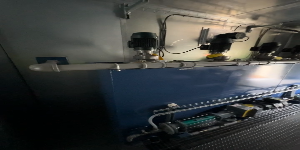

- (4) DUAL BLADE 2HP POLYMER MIXERS- (1) HOOTENANNY LINE FOR POLYMER INJECTION

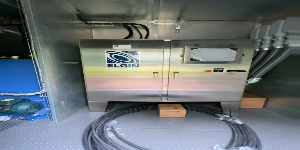

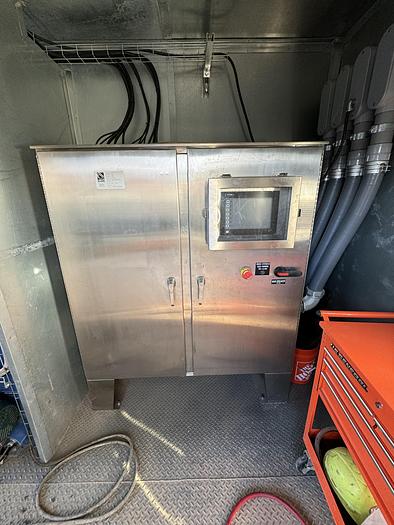

- (1) NEMA-4X CONTROL PANEL w/ VFD CONTROLS VIA HMI

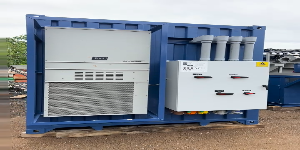

- (1) 2 TON AC/HEATING UNIT FOR CONTROL ROOM w/CAGE

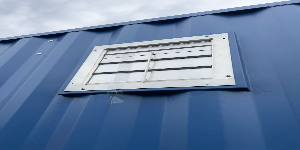

- (1) VENTILATION FAN

- (1) SAFETY DOOR

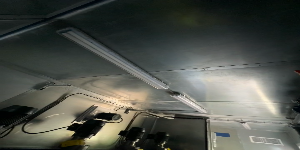

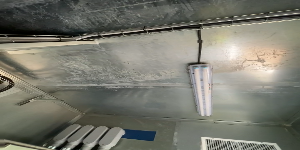

- (2) INTERIOR LED LIGHTING

GENERAL NOTES:

- ROOF IS HIDDEN FOR CLARITY

- SYSTEM ESTIMATED DRY WEIGHT: 13,300 LBS-

GENERAL ARRANGEMENT FOR REFERENCE ONLY AND MAY SUBJECT TO CHANGES

- 460V/60Hz, NON-EXPLOSION PROOF

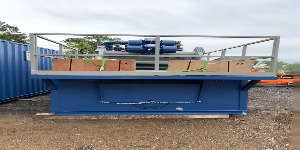

ELGIN SEPARATION SOLUTIONS TELESCOPING CENTRIFUGE STAND

(1) TELESCOPING SKID STAND COMPATIBLE w/ ESS-1967

- OSHA COMPLIANT STAIRCASE AND HANDRAILS

- 24" DIAMETER HALFMOON CULVERT PIPE FOR SOLIDS DISCHARGE

- 8" CENTRIUFUGE LIQUID DISCHARGE

-GENERAL NOTE: ESTIMATED DRY WEIGHT (STAND ONLY) = 5,500 LBS

More specifications can be found below in the DOCUMENTS section.

Please contact us for further detail and pricing.

Thank you!

Subject to prior sale and/or other disposition.
