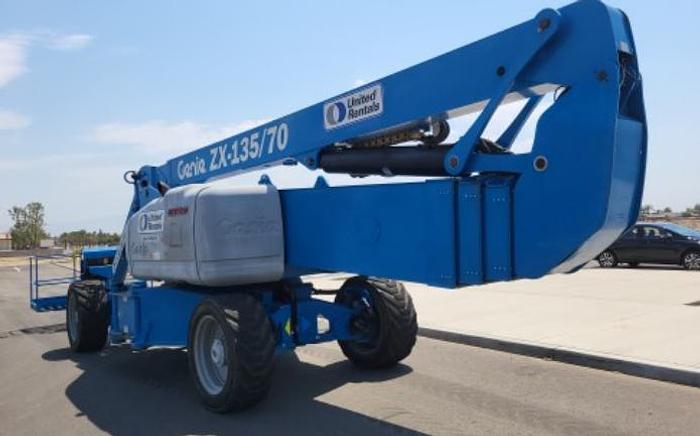

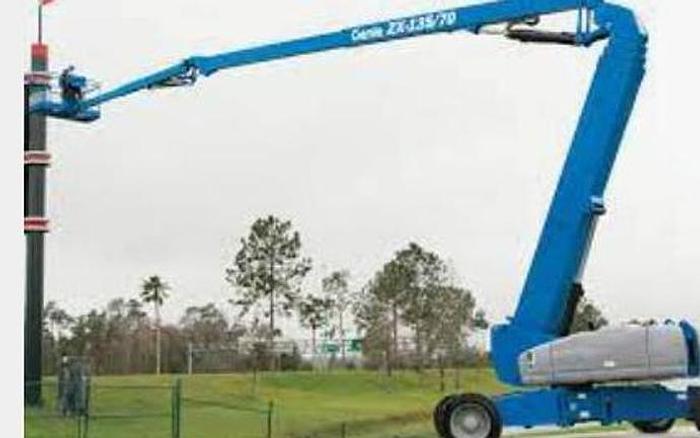

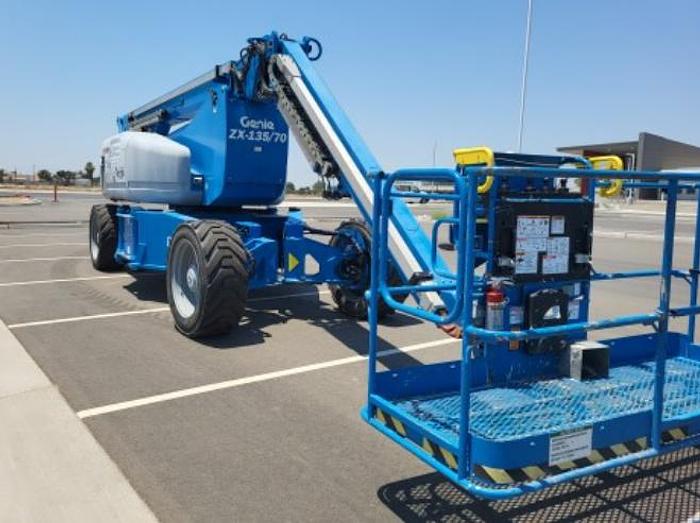

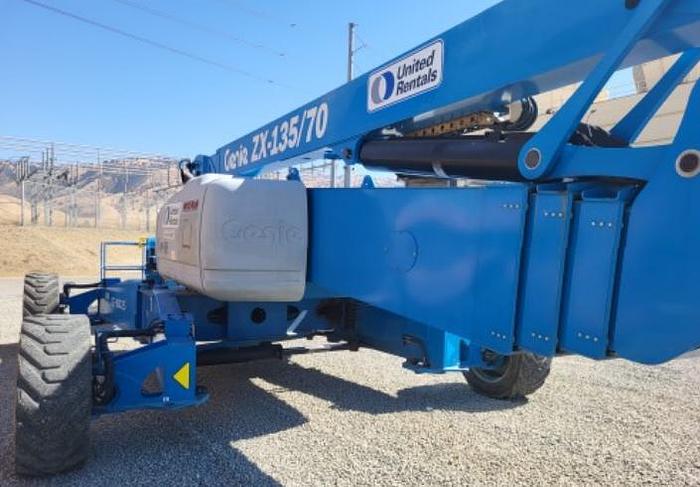

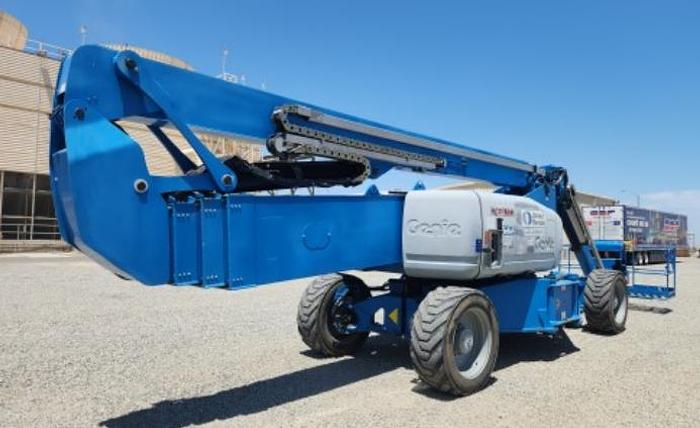

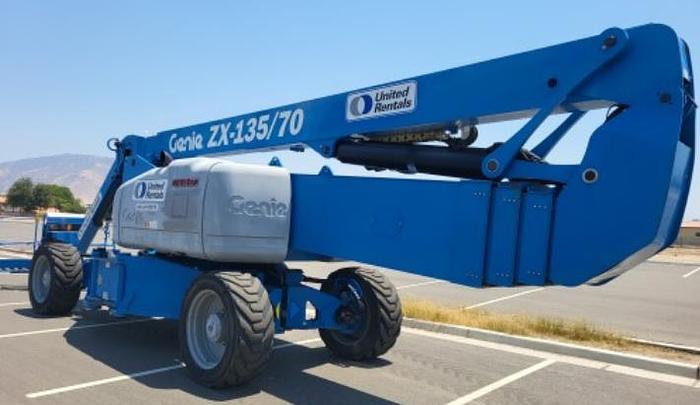

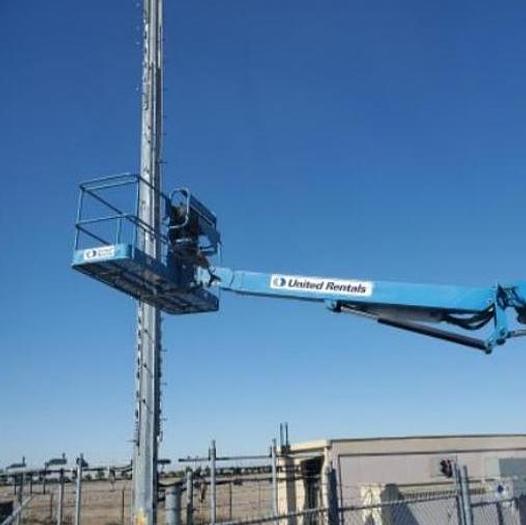

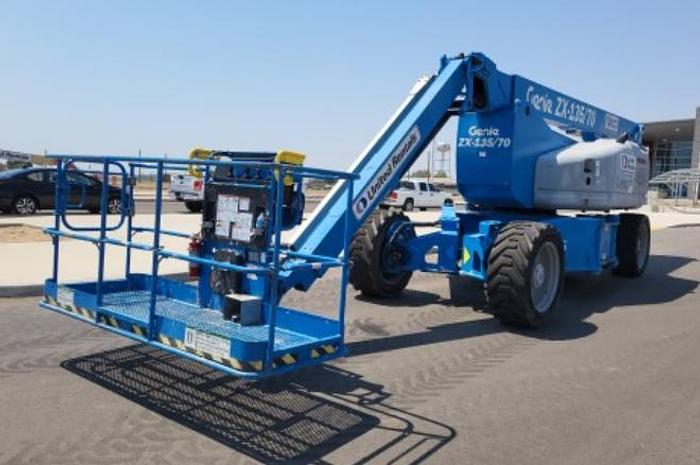

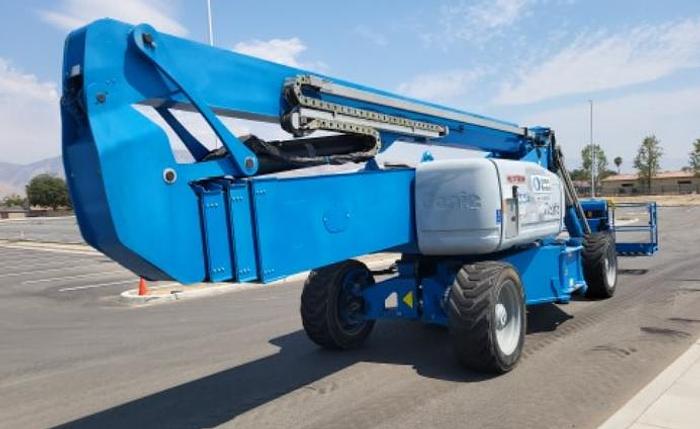

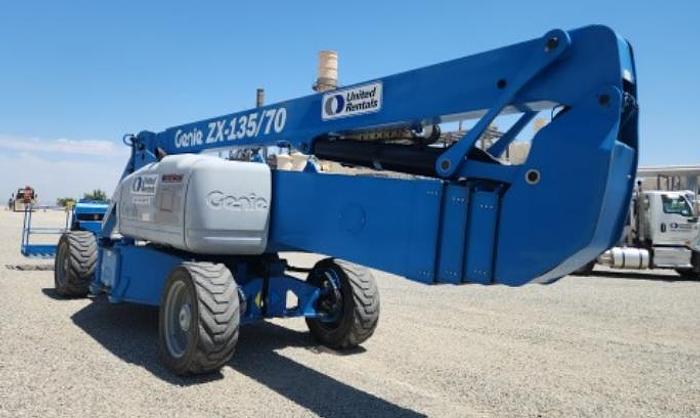

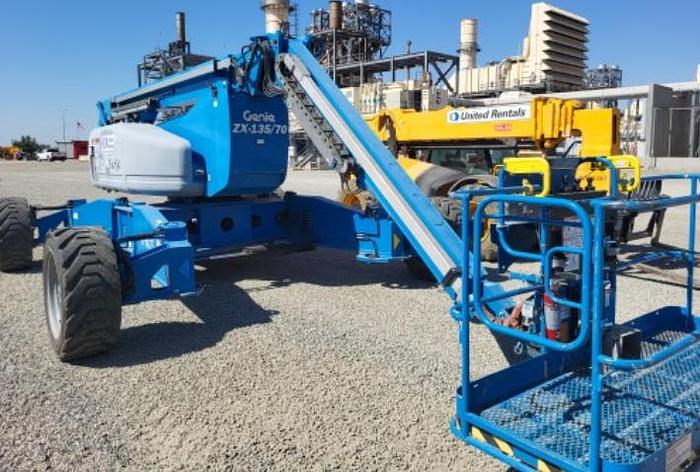

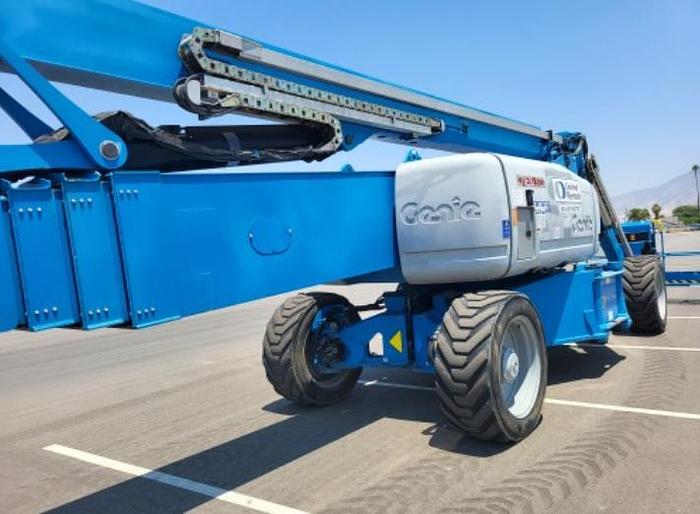

2016 Genie 135ft Articulating Boom
![Used 2016 Genie 135ft Articulating Boom](https://i.machineryhost.com/9461cce28ebe3e76fb4b931c35a169b0/5f02210981e3629db03fd238685415a3/large-used-2016-genie-135ft-articulating-boom.jpg)
2016 Genie 135ft Articulating Boom
$112,027 (USD)
Location:Bakersfield, CA
Available quantity:1
Description
🔥 2016 Genie Z-135/70
Theis Boom is field ready!
Rental purchase option as well as lease to own
3, 6, 12 month warranty available
Make: GENIE
Model: ZX-135/70
Year: 2016
Serial#: ZX13516H-2910/ GE-16025

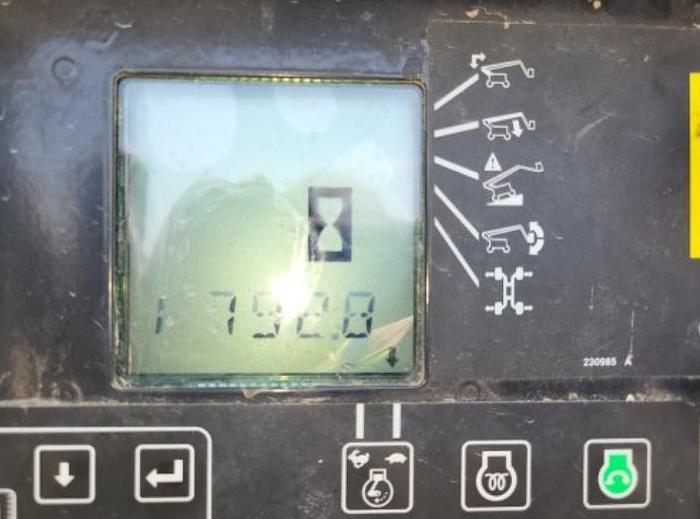

Hours: 1,792
Location: Bakersfield, CA

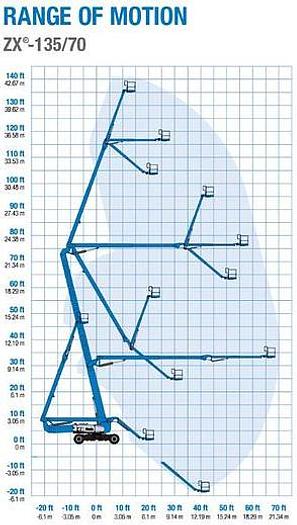

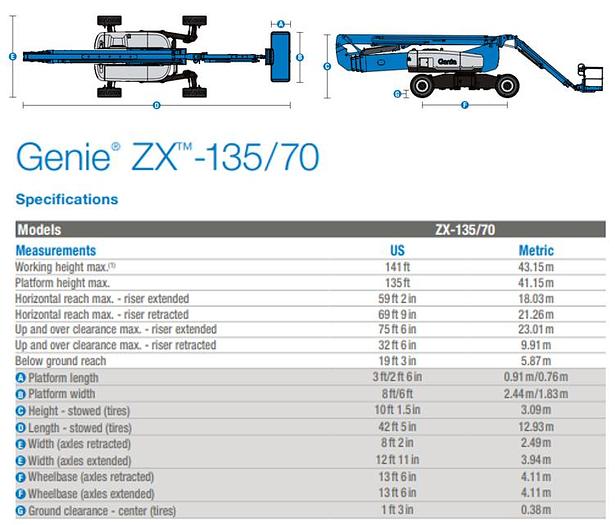

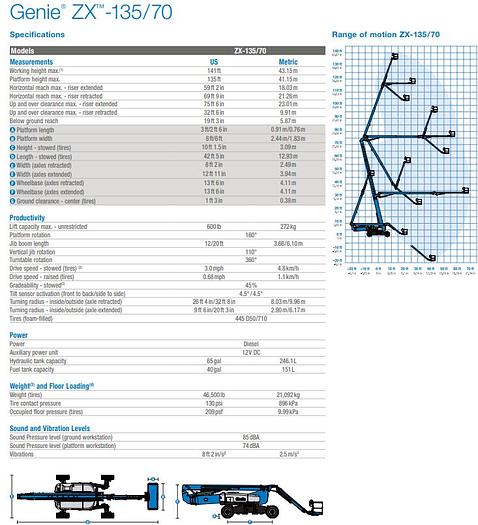

Max Working Height: 141 Feet
Platform height max: 135ft
Max horizontal reach (riser extended) 59ft 2in
Max Horizontal Reach (riser retracted) 69 ft 9 in
Max Up and Over Clearance (riser extended): 75 ft 6 in
Max Up and Over Clearance (riser retracted): 32ft 6 in
Below Ground Reach: 19 ft 3 in

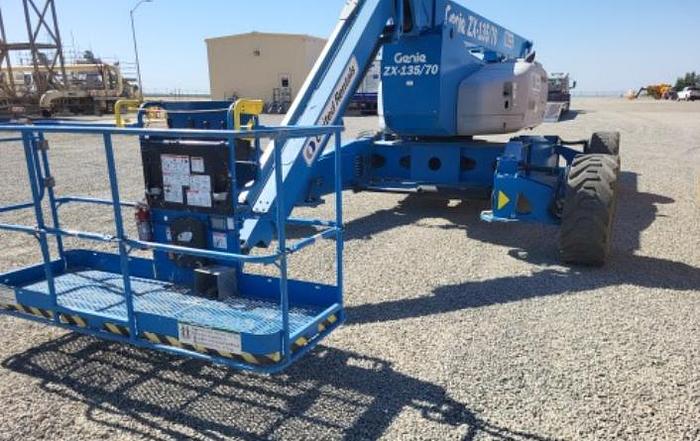

Platform Length: 3ft / 2ft 6in
Platform width: 8ft / 6ft
Height – stowed: 10ft 1.5 in
Length – stowed: 42ft 5 in
Width: 13ft 6 in
Lift Capacity: 600 LB
Platform Size: 36" X 96"
Gradeability: 45%
Power: 75HP DSL
Weight: 46,500 LBS
Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.
Overview
- Mini Genie X-Chassisâ„¢ system extends and retracts to provide both stability on the job and a narrow profile for transport
- Telescoping Jib-Extendâ„¢ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110Ëš vertical range of motion
- 360Ëš continuous rotation turntable and 160Ëšplatform rotation for fast, easy positioning
- Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability
👉 Viewing this on Machinio? Then follow this link to view the full Equipment Listing
https://www.vidaeq.com/listings/5902268-used-2016-genie-135ft-articulating-boom
Please contact us for Pricing and more Information!
All Items to be quoted in US currency. All prices and availability are subject to change without
notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until
the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless
otherwise specified. Use hours are estimate hours as of the date of this posting and are not
guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this
offer. Sale subject to terms and conditions on final bill of sale.
Contact us:
Michael Aguilar
+1 661 655 1454
Visit us on LinkedIn
https://www.linkedin.com/company/vida-eq
Specifications
Manufacturer | Genie |
Model | Z-135/70 |
Year | 2016 |
Condition | Used |
Serial Number | ZX13516H-2910 / GE-16025 |
Stock Number | 00583 |
