2021 Elgin CSI-D4 PACKAGE SYSTEM, BORDIS SPECIFICATIONS w/TOP HAT

2021 Elgin CSI-D4 PACKAGE SYSTEM, BORDIS SPECIFICATIONS w/TOP HAT

$420,000 (USD)

420,000
Financing Available
Apply for credit

Location:Bogota, Colombia

Available quantity:1

orCall +18009572391

Description

www.VIDAEQ.com


CSI-D4 PACKAGE SYSTEM, BORDIS SPECIFICATIONS w/TOP HAT

(Variant 2)


Hours: 1,000

This unit is in excellent condition, fully service and ready to work. All maintenance records are available.


Complete specifications can be found in the DOCUMENTS section.


Includes:

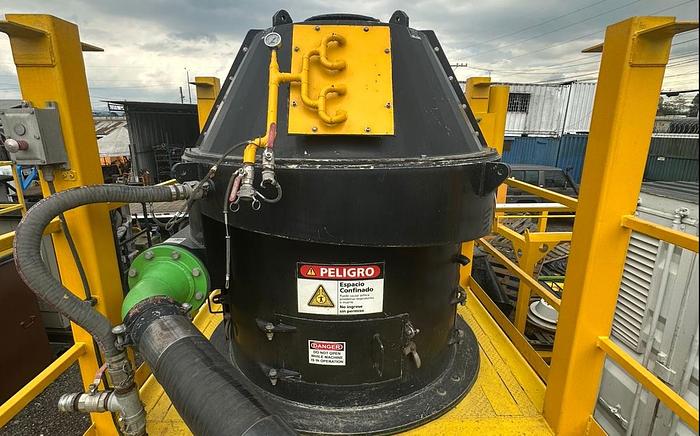

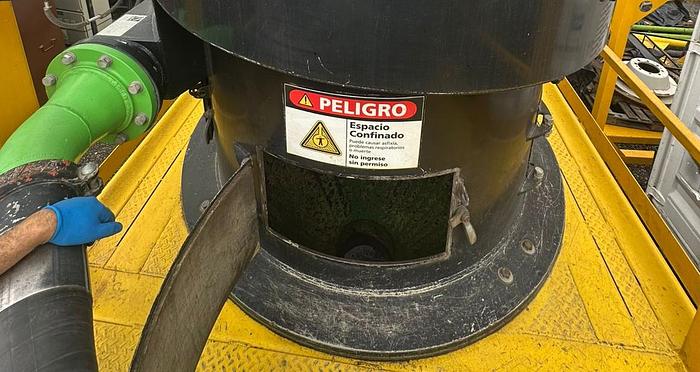

- CSI-D4 Vertical Cuttings Dryer

CSI-D4 Vertical Cuttings Dryer (Dryer Only)

New Helicoil Style Flush Ring

(2) 3” Feed Inlets for Spay Bars

Victaulic connected Spray Bars

Teflon Coated Water Shield and Discharge Cone

Powder Coated

New Full Tungsten Tiled Flight set installed

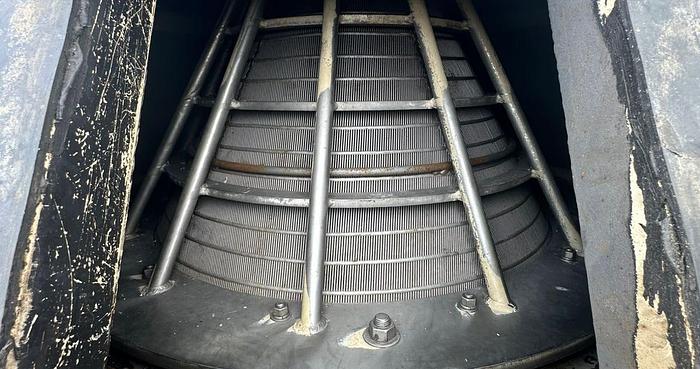

0.020” Chrome Screen installed

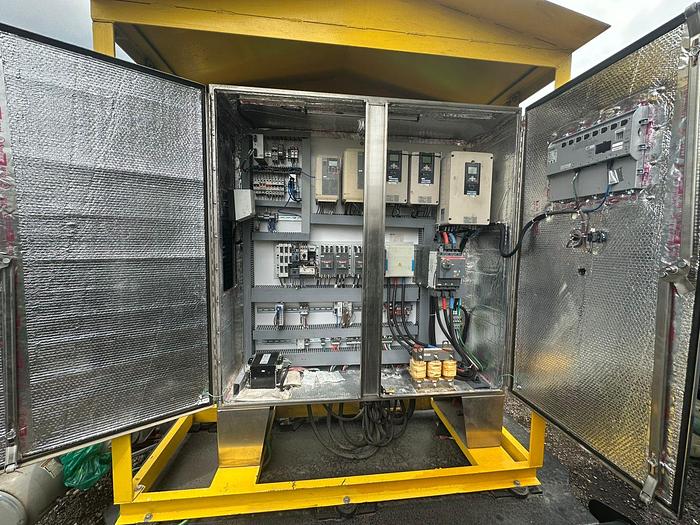

- Electrical Control System with Protective Cage and System Wiring

Non-Explosion Proof NEMA 4X Stainless Steel VFD Cabinet

One (1) 60HP Yaskawa A1000 VFD VCD Drive

One (1) 15HP Yaskawa A1000 VFD VCD Drive

One (1) 7.5HP A-1000 VFD Feed Auger Drive

Two (2) 20HP Self Priming Pump Starters

One (1) 3HP Hopper Rack & Pinion Drive Starter

HMI Touch-Screen Interface with PLC Controller

Full Armored and Sheathed Wiring to All Electrical Components

Integrated Cable Trays with Open Access

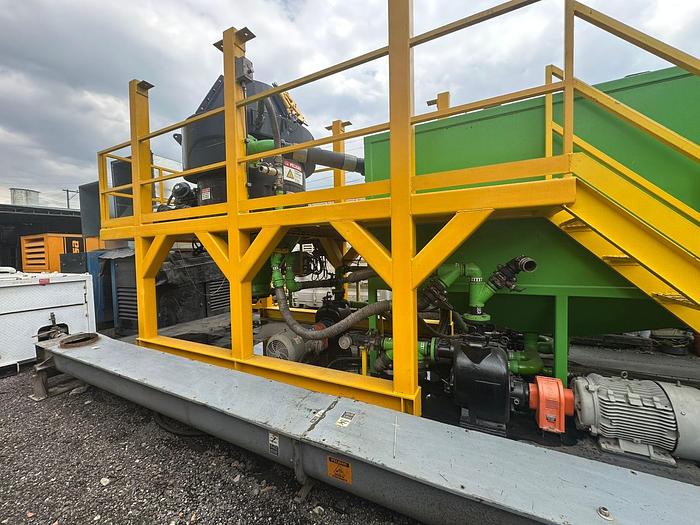

Package:

1,500-Gallon V-Bottom Centrate Collection Tank

Two (2) Level Switches

Dual 3” Cam-Lock Outlet Connections

Dual Mud Gun Jet Mixers in Dirty Tank.

Dual Hinged Lids

By-Pass Valve for Tank Communication.

Hoses inclusive of Cam-Lock Fittings, to be Used on All Feed Lines

Powder Coated


8” Oil-Field Skid Structure

8” x 30’ x 10.5’ ASTM A36 ¼” Plate Decking

Dual Pipe Bollard Ends with “Ice-Breaker” Edges

Powder-Coated


VCD Stand

Fixed Height Stand

Expanded Landing area for extra room under stairs

Expanded Full Surround Working Deck with Checker Plate Walkways on

upper deck with standard handrails.

Full Stair Case with Railings & Removable Ladder

(2) Explosion Proof 110V Power Outlets

Removable side wall panels for lower deck (both sides)

Added Upper Substructure with Integrated Rails for Retracting Hopper Assembly

Conical Discharge with Flange End for Connection to 4” Cam-Lock Fitting.

Removable (2) Stand Legs for Swiveling Conveyor

Powder Coated


(2) - 3x3 Self-Priming, Solids-Handling Centrifugal Pump Package

25HP Inverter-Duty Motor

Skid Mounted

Coupling Guard

3” Butterfly Discharge Isolation Valve

Schedule 40 Fittings

Associated Flexible Connections with Female Cam-Lock Fittings


Retracting / Removable VCD Hopper Assembly

Frame-Reinforced 1/4” Plate Steel Hopper and Schedule 40 Tubular Steel Sub-Structure

Screw Conveyor mounted to bottom of Hopper

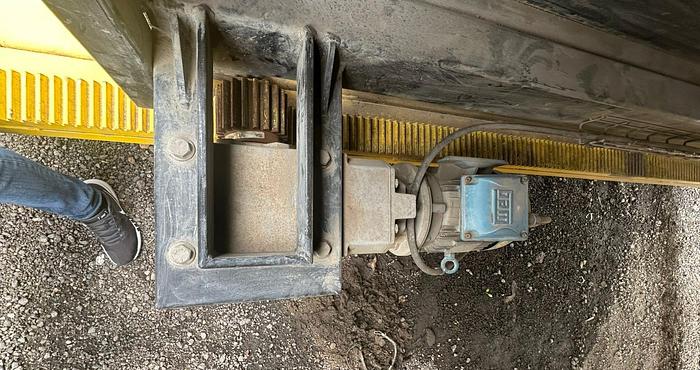

Rack & Pinion System with 3HP Break Motor for Hopper, Screw Conveyor actuation.

Four (4) Upper Lifting Eyes

Integrated VFD Controlled

Removable Hopper Access Ladders (2)

Integrated Four-Point Caster System with Protective Retaining Clamps and

Limit Switch and Four-Point Pin Sets.

Hinged Safety Grating over Hopper Feed Section (4”x4” Opening in Grating)

Powder-Coated


(16) - Lifting Point Load Test To be Performed on Sixteen (16) Equipment Lifting Pad Eyes.

The four bollard corners of the base skid.

The four corners of the upper feed hopper rail system.

The four points within the upper feed hopper.

The four points around the VCD.

Each Pad Eye to be Tested to 1.5X the Rated Lifting Capacity.

Liquid Penetrant / Wet Mag Testing Performed Post Test.

Documented Certificates to be Provided for Each Lifting Eye.


Pneumatic Conveyance “Top Hat” Feed Head

“Top Hat” Package with Integrated Vent and Rain Hood.

18” in Diameter, 20” in Height.

4” and 3” Cam-Lock Fittings Ported at a Tangent to Top Hat Body.

Powder-Coated ASTM A36 Carbon Steel.

Flange Face for Direct Connection to Inlet Hopper of CSI-04, CSI-E4 or CSID4 VCD.

Interior Wear Liner to Mitigate Abrasion.

Non-Certified Lifting Eyes Included.

Pneumatic Conveyance Feed Head Auger Hopper Bridge

Designed to Support “Top Hat” Package via Flange Face.

Powder-Coated ASTM A36 Carbon Steel.

Down Chute to Direct Slurry to VFD-Driven Feed Auger.


History:

Equipment Package was purchased late 2021.


Unit arrived December 2021

Hours: 1,000


Skid is fully maintained and ready to work.


Complete maintenance records can be provided.


More specifications can be found below in the DOCUMENTS section.


Please contact us for further detail and pricing.


Thank you!


Subject to prior sale and/or other disposition.
