2021 Elgin CSI-D4 PACKAGE SYSTEM, BORDIS SPECIFICATIONS w/TOP HAT
2021 Elgin CSI-D4 PACKAGE SYSTEM, BORDIS SPECIFICATIONS w/TOP HAT
Contact us for price
Location:Bogota, Colombia
Available quantity:1
Description
CSI-D4 PACKAGE SYSTEM, BORDIS SPECIFICATIONS w/TOP HAT
(Variant 1)
This unit is in excellent condition, fully service and ready to work. All maintenance records are available.
Complete specifications can be found in the DOCUMENTS section.
Includes:

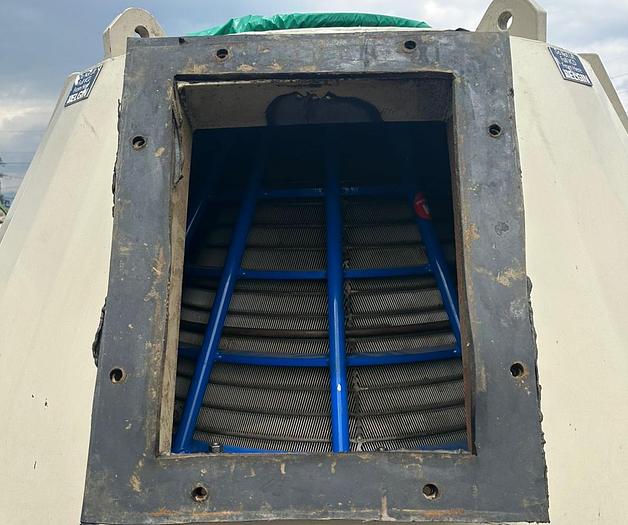

- CSI-D4 Vertical Cuttings Dryer
CSI-D4 Vertical Cuttings Dryer (Dryer Only)
New Helicoil Style Flush Ring
(2) 3” Feed Inlets for Spay Bars
Victaulic connected Spray Bars
Teflon Coated Water Shield and Discharge Cone
Powder Coated
New Full Tungsten Tiled Flight set installed
0.020” Chrome Screen installed
- Electrical Control System with Protective Cage and System Wiring
Non-Explosion Proof NEMA 4X Stainless Steel VFD Cabinet
One (1) 60HP Yaskawa A1000 VFD VCD Drive
One (1) 15HP Yaskawa A1000 VFD VCD Drive
One (1) 7.5HP A-1000 VFD Feed Auger Drive
Two (2) 20HP Self Priming Pump Starters
One (1) 3HP Hopper Rack & Pinion Drive Starter
HMI Touch-Screen Interface with PLC Controller
Full Armored and Sheathed Wiring to All Electrical Components
Integrated Cable Trays with Open Access
Package:

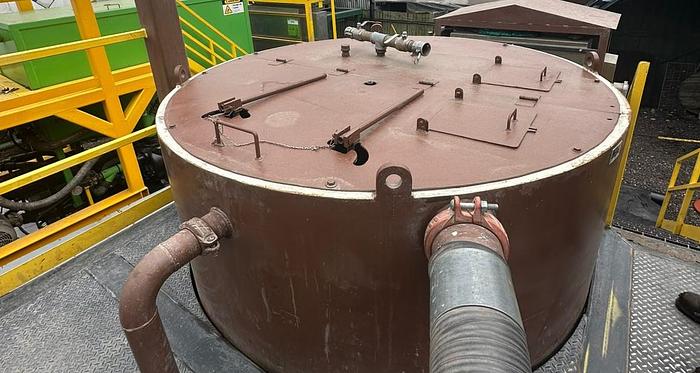

1,000-Gallon Dish Bottom Cylindrical Tank
Two (2) Level Switches
Visual Alarm and Optional Pump Interlock
Dual 3” Cam-Lock Outlet Connections
Dual Swivel Mud Gun Jet Mixers (1 Jet facing Bottom of Tank, Other Jet at 45° Angle)
Below Mounted Steam Coils with 2” Male Cam-Lock Fittings (Steel Piping)
Hinged Lid with Dual Lifting Points and Large Manhole
Tank Level Gauge (Metric Readings)
Hoses inclusive of Cam-Lock fittings, to be used on all feed lines
Powder Coated
8” Oil-Field Skid Structure
8” x 30’ x 10.5’ ASTM A36 ¼” Plate Decking
Dual Pipe Bollard Ends with “Ice-Breaker” Edges
Powder-Coated
VCD Stand
Fixed Height Stand
Expanded Landing area for extra room under stairs
Expanded Full Surround Working Deck with Checker Plate Walkways on
upper deck with standard handrails.
Full Stair Case with Railings & Removable Ladder
(2) Explosion Proof 110V Power Outlets
Removable side wall panels for lower deck (both sides)
Added Upper Substructure with Integrated Rails for Retracting Hopper Assembly
Conical Discharge with Flange End for Connection to 4” Cam-Lock Fitting.
Removable (2) Stand Legs for Swiveling Conveyor
Powder Coated
(2) - 3x3 Self-Priming, Solids-Handling Centrifugal Pump Package
25HP Inverter-Duty Motor
Skid Mounted
Coupling Guard
3” Butterfly Discharge Isolation Valve
Schedule 40 Fittings
Associated Flexible Connections with Female Cam-Lock Fittings
Retracting / Removable VCD Hopper Assembly
Frame-Reinforced 1/4” Plate Steel Hopper and Schedule 40 Tubular Steel Sub-Structure
Screw Conveyor mounted to bottom of Hopper
Rack & Pinion System with 3HP Break Motor for Hopper, Screw Conveyor actuation.
Four (4) Upper Lifting Eyes
Integrated VFD Controlled
Removable Hopper Access Ladders (2)
Integrated Four-Point Caster System with Protective Retaining Clamps and
Limit Switch and Four-Point Pin Sets.
Hinged Safety Grating over Hopper Feed Section (4”x4” Opening in Grating)
Powder-Coated
(16) - Lifting Point Load Test To be Performed on Sixteen (16) Equipment Lifting Pad Eyes.
The four bollard corners of the base skid.
The four corners of the upper feed hopper rail system.
The four points within the upper feed hopper.
The four points around the VCD.
Each Pad Eye to be Tested to 1.5X the Rated Lifting Capacity.
Liquid Penetrant / Wet Mag Testing Performed Post Test.
Documented Certificates to be Provided for Each Lifting Eye.
Pneumatic Conveyance “Top Hat” Feed Head
“Top Hat” Package with Integrated Vent and Rain Hood.
18” in Diameter, 20” in Height.
4” and 3” Cam-Lock Fittings Ported at a Tangent to Top Hat Body.
Powder-Coated ASTM A36 Carbon Steel.
Flange Face for Direct Connection to Inlet Hopper of CSI-04, CSI-E4 or CSID4 VCD.
Interior Wear Liner to Mitigate Abrasion.
Non-Certified Lifting Eyes Included.
Pneumatic Conveyance Feed Head Auger Hopper Bridge
Designed to Support “Top Hat” Package via Flange Face.
Powder-Coated ASTM A36 Carbon Steel.
Down Chute to Direct Slurry to VFD-Driven Feed Auger.
History:
Equipment Package was purchased late 2021.
Unit arrived October 2021
Hours: 2,600
Skid is fully maintained and ready to work.
Complete maintenance records can be provided.
More specifications can be found below in the DOCUMENTS section.
Please contact us for further detail and pricing.
Thank you!
Subject to prior sale and/or other disposition.
