2013 AMC Drillmec Explorer

www.vidaeq.com

2013 Drillmec Explorer Rig Package

Rig: Drillmec Explorer

Type: 2300 HP Land Rig

Location: USA, Texas

Original 2013 Documentation and 2013 Certificates: Available to the buyer.

• Manufacturer: Drillmec rig design, Manufactured by AMC in Texas
• Year of Last CAT IV: At manufacture 2013
• Year of Manufacture: September, 2013
• Years of Service: 6.5 Yrs. Only ever at the Training Facility, Primary role was for testing of products / technologies and used for training. The rig drilled 8 wells at the Training Facility only. All other work that the rig completed was over these wells i.e. tripping / out of wells for training / product development etc.
• Year Removed from Service: June 2020
• Storage Location: Texas
• Current Asset List: Attached

Rig Specifications:

Basic Design: Box on Box

Service Date: 9/2013

Last CAT IV: At Production

Rated Drilling Depth: 20,000 ft

Base Footprint: 125' x 24'-4" Base

Storage Capacity:

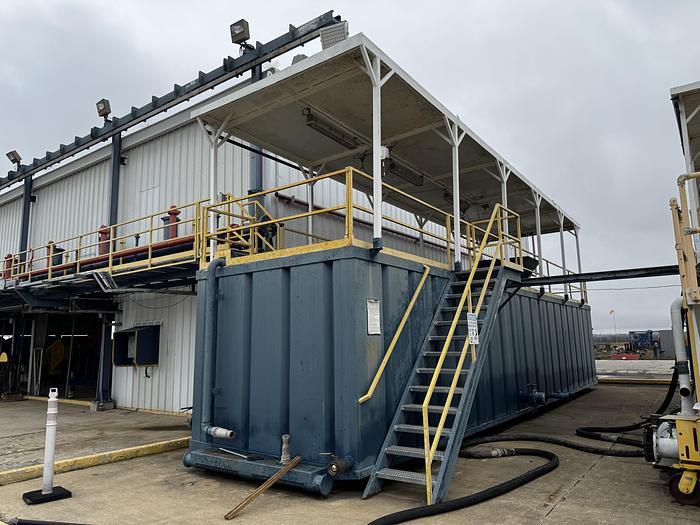

Active Mud System: 500 BBLS

Reserve Mud System: 500 BBLS

Weight Storage: 1500 (400 + 500 + 600 bbl.)

Power System:

Engines: No Engines due to Line Power Being Used to Supply Rig Power

Generators: No Generators

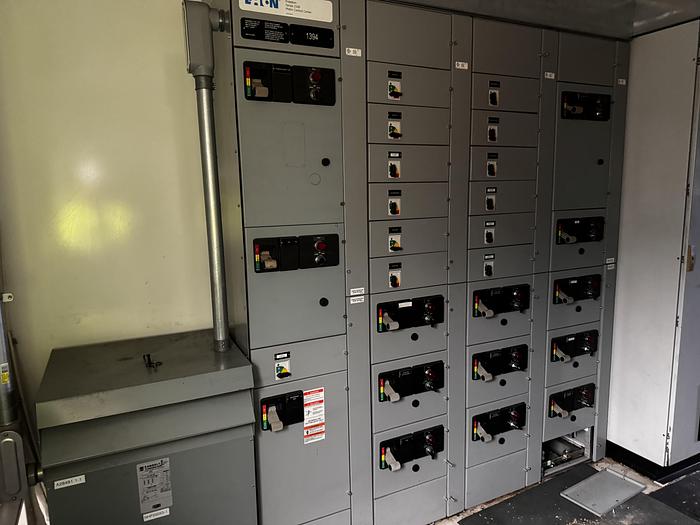

Drive: AC-VFD

Circulating System:

Standpipe Rating: 5,000 psi

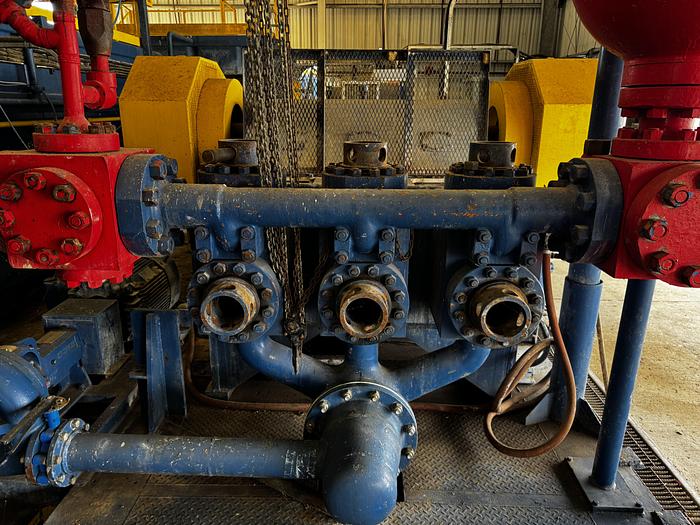

Mud Pumps: Two (2) 2,400 hp PZ-11 Gardener Denver 5,000 psi)

Rotating System:

Top Drive: NOV Varco TDS 11SA, 800HP, 500 Ton

Block: American Block

Rotary Table: 37 1/2"

Well Control Equipment:

Blow Out Preventer: 13 5/8" 5,000 psi annular w/-- 13 5/8" 5,000 psi double ram

Choke Manifold: 5,000 psi

Accumulator: 12 bottles, 3,000 psi

Hoisting System:

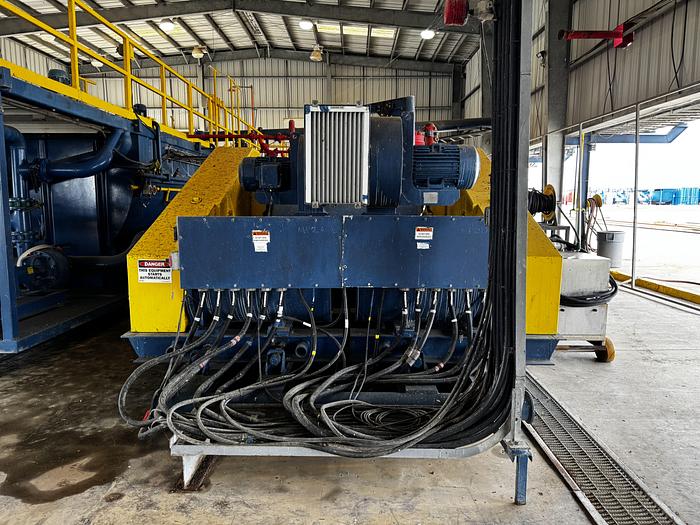

Drawworks: American Block DKS-2300A (2300 hp Drawworks, 872 kips on 12 lines)

Brake: Airflex Disc Brake - DBBS 8110

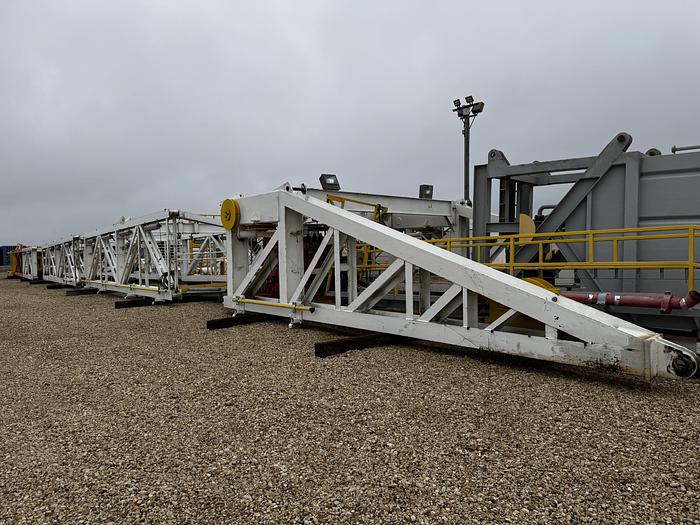

Mast: Drillmec Inc. 152ft. triple mast with 1,000,000 lbs. static hook load

Setback: 600,000 lbs.

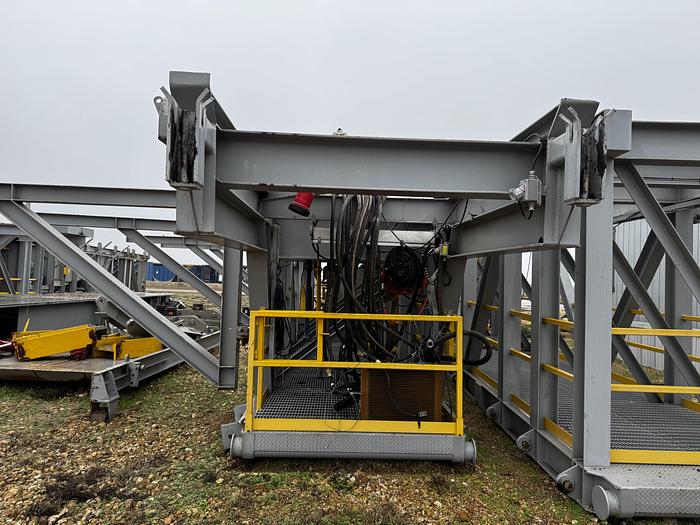

Substructure: 30ft box on box design

Crown: Drillmec Inc, 1,000,000 lbs.

Sheaves: Six (6) x 60 grooved 1 1/2" line

Traveling Block: American Block B50F400 (400T Traveling Block Assembly)

Solids Control Equipment:

Shale Shakers: Three (3) MI SWACO Mongoose

Mud Cleaner: -

Vacuum Degasser: -

Other Equipment:

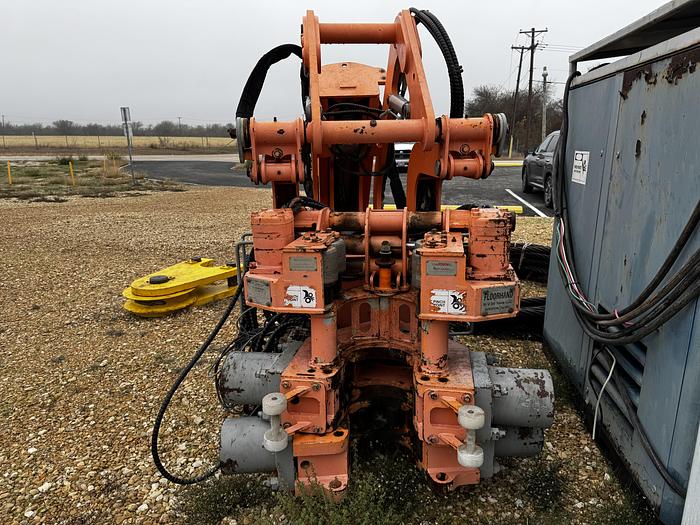

Floor Wrench: B+V Iron Roughneck, Handles 4 in.- 11 1/2" O.D. 80,000 ft.lbs. M/U & 100,000 ft. lbs. B/O TRQ.

See DOCUMENTS section for Brochure and Specifications Sheets. The original 2013 Documentation and 2013 Certificates will be made available to the buyer and end-user only.
